Galvalume Steel

Product Introduction

The weight ratio of the coating composition of 55% aluminum zinc silicon steel plate is composed of 55% aluminum, 43.4% zinc, and 1.6% silicon. The surface of 55% aluminum silicon steel plate has a unique smooth, flat, and gorgeous zinc flower, with a silver white base color.


Corrosion resistance:

The comprehensive anti-corrosion ability is 3-6 times that of galvanizing of the same thickness;
Heat reflectivity:

The heat reflectivity is twice that of galvanized steel plate, and people often use it as a material for insulation;
Heat resistance:

It has good heat resistance and can withstand temperatures of over 300 degrees Celsius;
Easy to paint:

The aluminum zinc silicon board has excellent adhesion with paint, and can be painted without pre-treatment or weathering treatment;
Aesthetics:

The surface presents a unique smooth, flat, and gorgeous zinc flower with a silver white base color, which is widely used in the field of home appliances.

sports event form instructions
production standard / Supply according to GB/T12754:2006 or customer requirements
Product Specification Thickness (mm) 0.35-1.0
Width (mm) 600-1250
Plating System Zinc Liquid Composition 55% Aluminum Zinc Silicon Plating Adopting GB/T14978:2008
Zinc layer weight ≥100g/m²
surface treatment Using the laser burring process
Coating System coating manufacturer AkzoNobel Coatings,PPG Industrial Coatings
Paint varieties High Performance Polyester (HDP), Silicone Modified Polyester (SMP), Fluorocarbon (PVDF)
Coating Color Color can be customized, regular product delivery cycle of 7-20 days
Coating structure Double Coated/Double Coated; Triple Coated/Double Coated
Coating thickness ≥23 μm/9 to 12 μm
Warranty System Paint Manufacturer Warranty 10-20 year color and coating chalking warranty, 15-25 year paint film integrity warranty
Fuhai New Material Protection 10-20 year color and coating chalking warranty, 15-30 year paint film integrity warranty

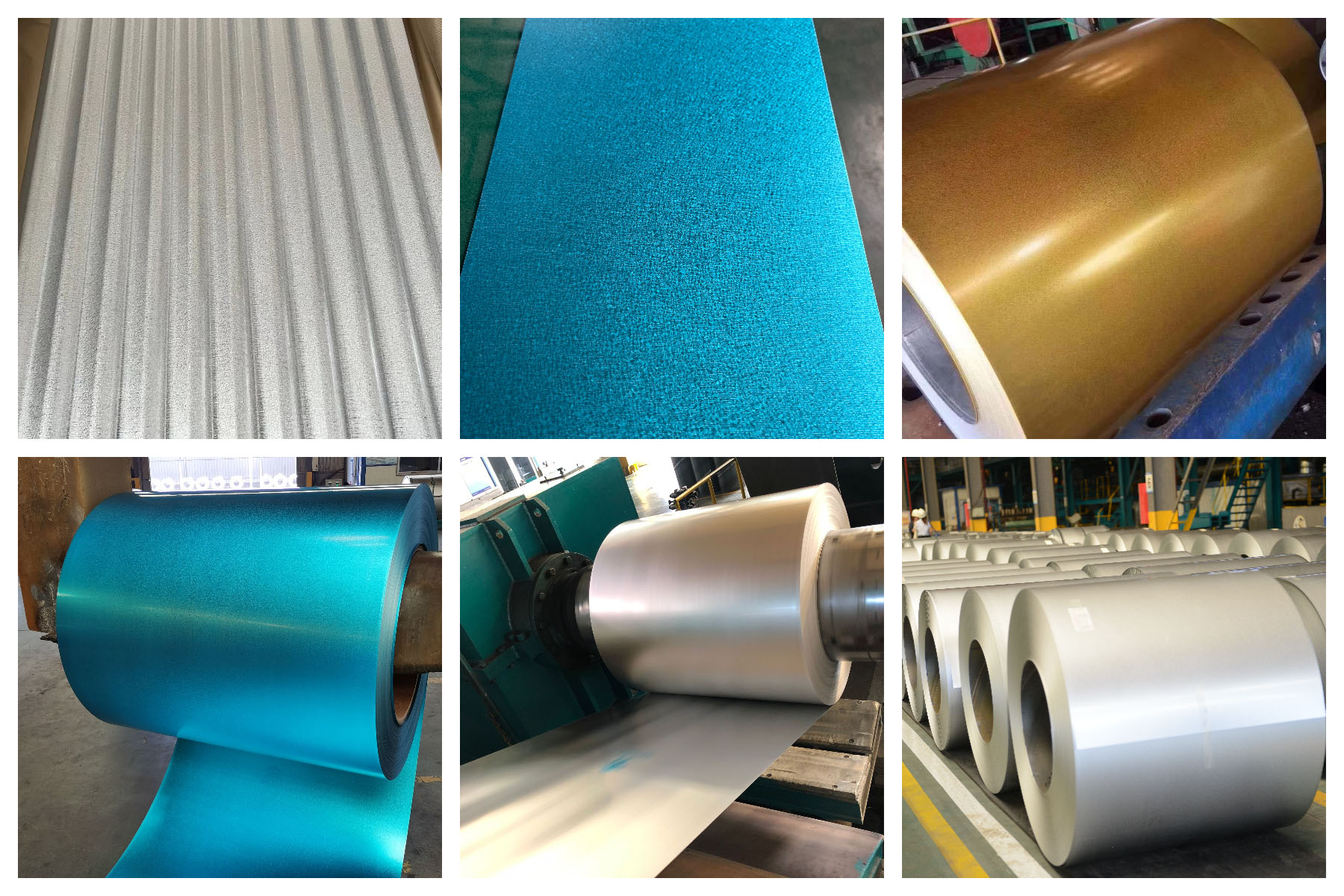

Product Display

下载 (10).jpg

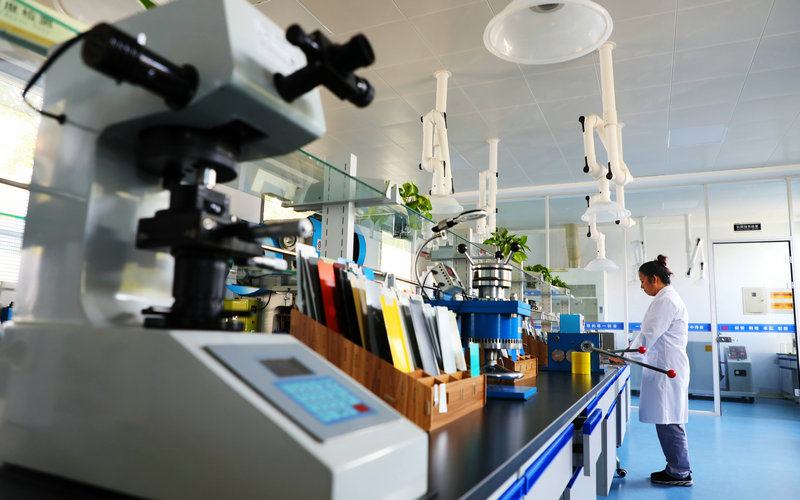

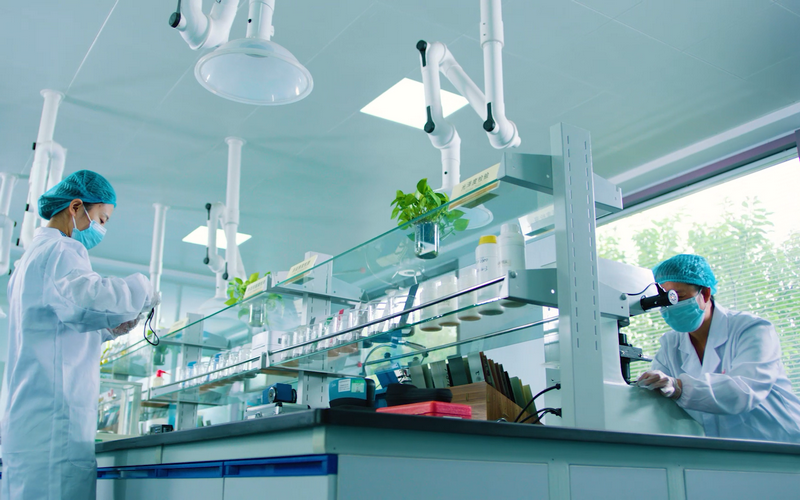

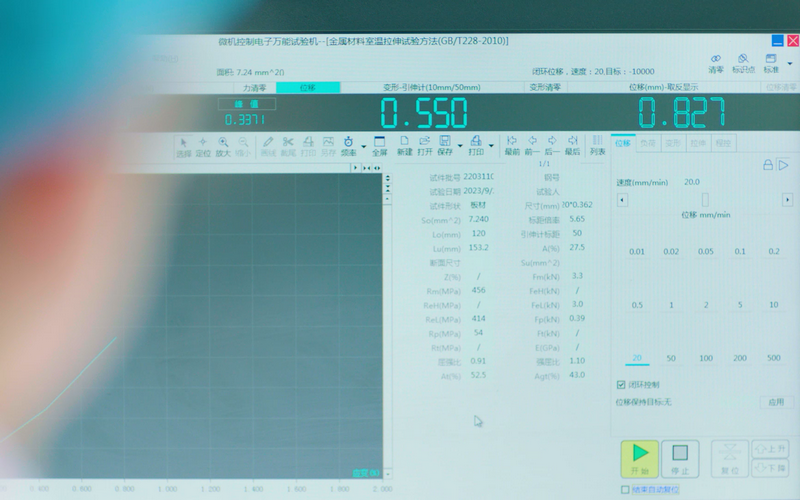

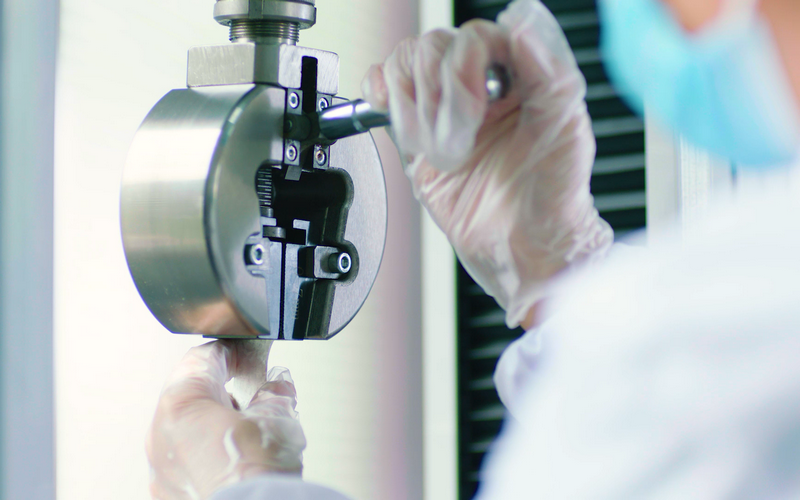

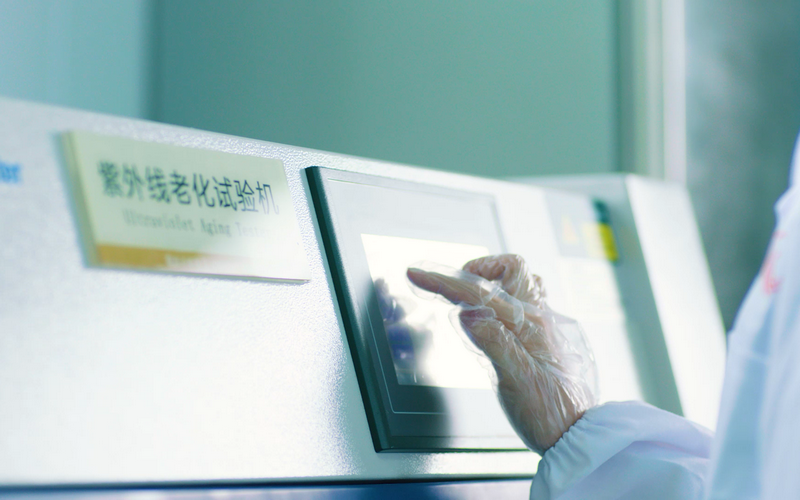

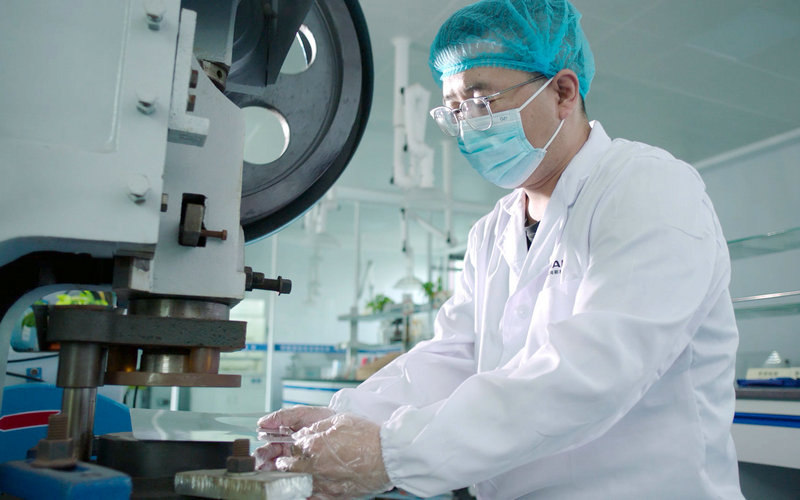

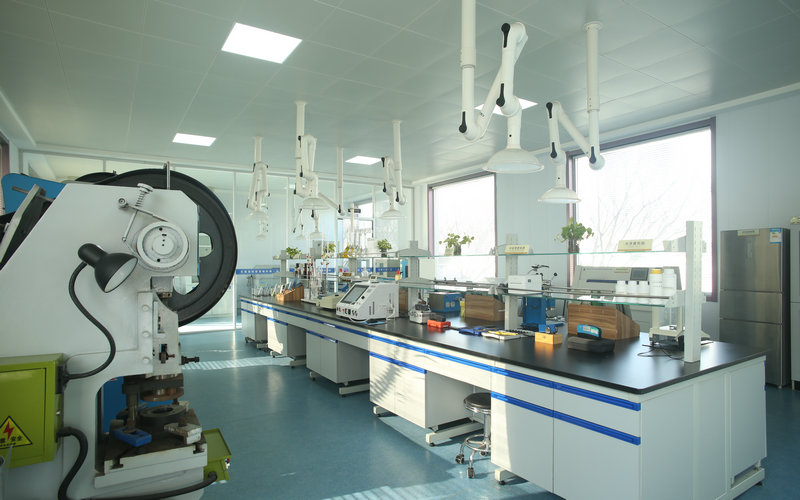

INSPECTION AND TESTING

  • Inspection and testing
  • Inspection and testing
  • Inspection and testing
  • Inspection and testing
  • Inspection and testing
  • Inspection and testing
  • Inspection and testing
  • Inspection and testing
  • Inspection and testing

WHY CHOOSE US

Shandong Fuhai Material Technology Co., Ltd., abbreviated as "Fuhai New Materials", was established in 2011 and covers an area of more than 340 acres. It is located in Boxing County, Shandong Province, known as the "hometown of metal sheets". It is a coating product manufacturing enterprise that integrates independent research and development, production, and sales.


Shandong Fuhai Material Technology Co., Ltd. is creating the high-end color coated board product "Lujiang" brand, which includes the Colorful Series, Youyuan Series, Lite Series, Special Appearance Series (Printed Board, Pearl Colorful Board, Metal Effect Board, Velvet Panel, Mesh Panel, Embossed Board, etc.), Special Function Series, and Home Electrical Board Series. Our business scope includes galvanized sheet, aluminum zinc plated sheet, zinc aluminum magnesium sheet, color coated sheet, aluminum magnesium manganese sheet, etc., and we have won brand honors such as "Shandong Famous Brand" and "Shandong Famous Trademark".


The company has a comprehensive production capacity of over 1.8 million tons per year, and its products are widely used in public buildings, industrial plant construction, home appliance boards, etc. In addition to being sold to some high-end domestic markets, the products are mainly exported to 86 countries and regions including Southeast Asia, the Middle East, Central Asia, South America, Europe, and Africa, with an export share of over 60%. For seven consecutive years, the export volume of color coated steel plates has ranked first in the country, making it one of the most influential domestic enterprises in the production and sales of hot-dip aluminum zinc silicon steel plates and color coated steel plates.

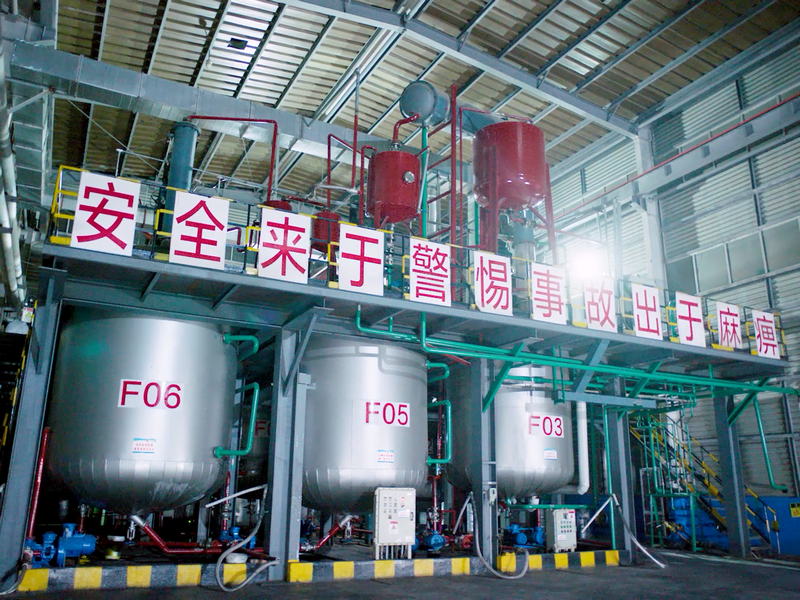

The company currently has two domestic high standard aluminum zinc silicon (55% AL) production lines, one multifunctional color coating production line for printing, laminating, and color aluminum, one high-end enclosed and clean color coating production line, and one high-end color coating production line and one galvanizing production line. In addition, the company is equipped with an independent paint blending production line, which can fully meet the customized and diversified needs of customers.

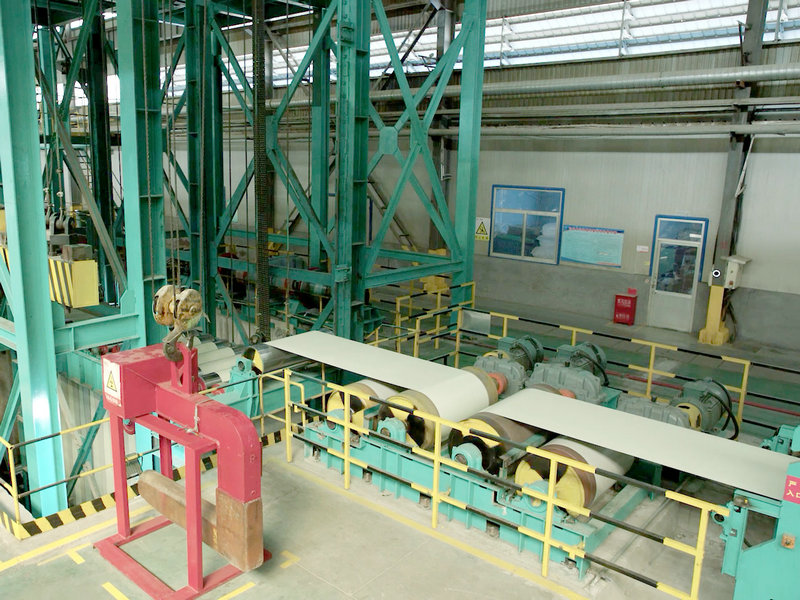

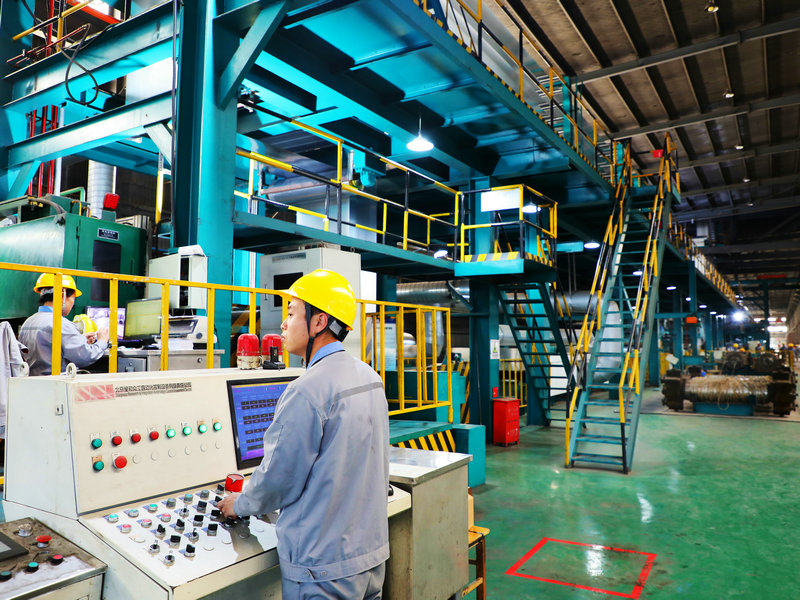

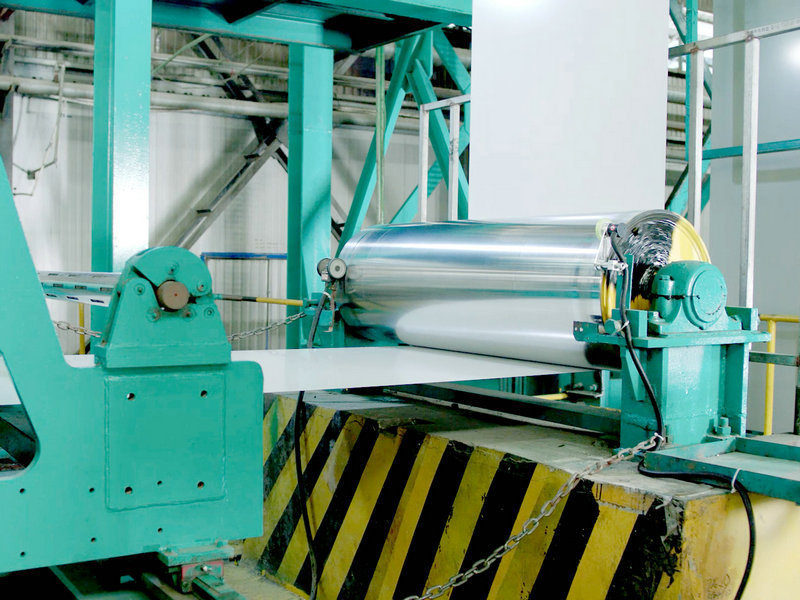

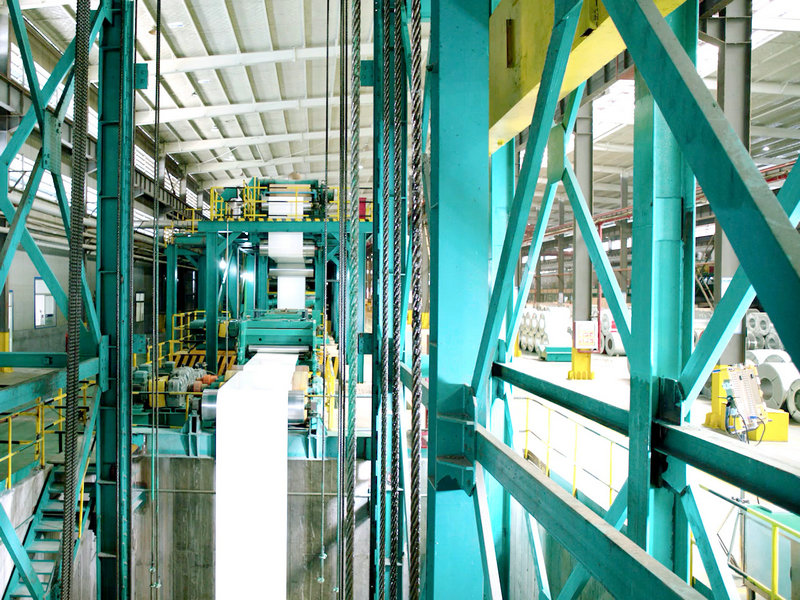

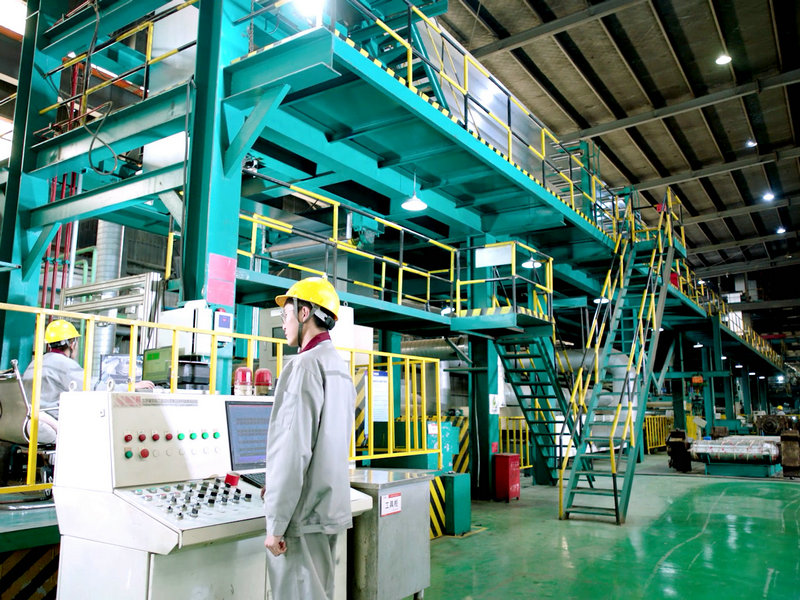

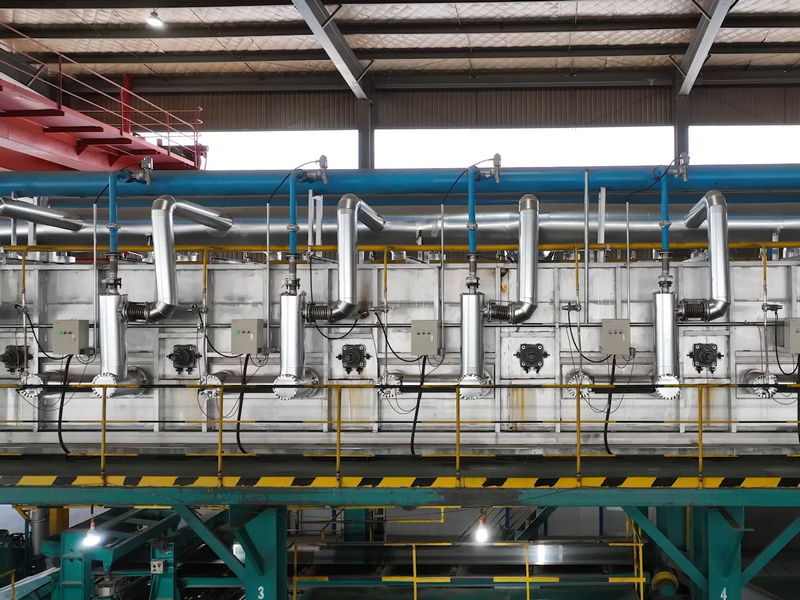

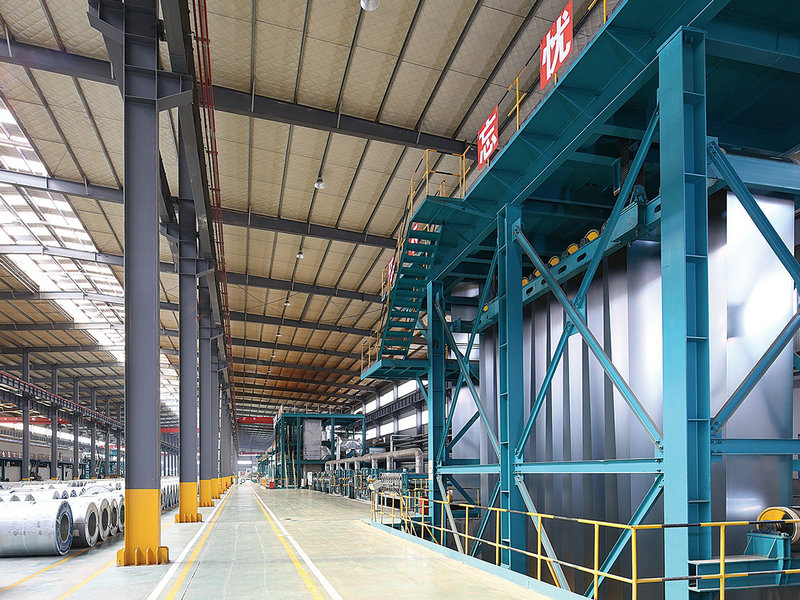

  • Workshop
